Apraksts

• Manufacturer NINIGI
• Type of switch ROCKER
• Contacts configuration  SPDT
• Number of positions 2
• Switching method  ON-(ON)
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  3A / 250V AC
• (at resistive load)
• Key button colour black
• Illumination none
• Max. contact resistance: 20mΩ
• Operating temperature -55...85°C
• Leads for soldering
• Electrical life 20000 cycles
• Button marking blank
• Shape rectangular
• Stable positions number 1

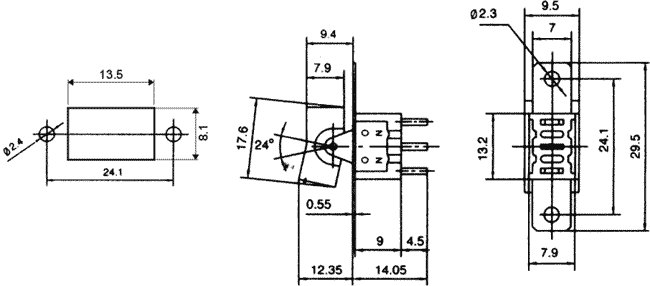

• Dimensions see
• Additional information
• Gross weight: 4.9 g
• Manufacturer part number: RSL-112A1

Parametri

SPDT
3A/250VAC
ON-(ON)
2
IP00
1
Taustiņslēdzis
Bez fiksācijas
1
Bez apgaismojuma

Papildu dokumentācija
