Apraksts

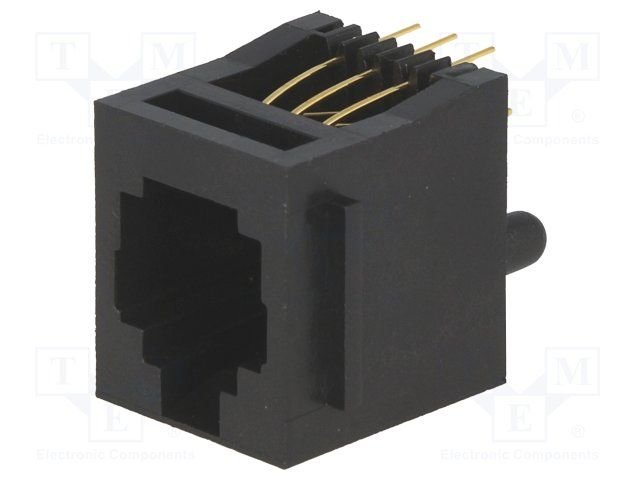

• Manufacturer NINIGI
• Connector socket
• Type of connector RJ12
• Number of pins 6
• Connector variant with panel stop blockade
• Contact material phosphor bronze
• Contact plating gold-plated
• Flammability rating UL94V-0
• Type of pin configuration 6p6c
• Enclosure material polyester
• Electrical mounting THT
• Spatial orientation straight

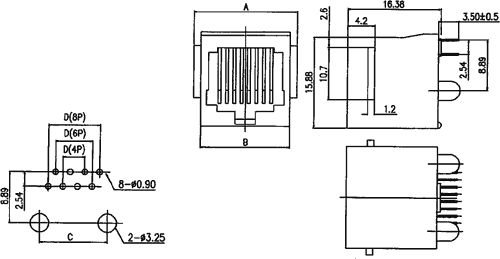

• A dimension 15.9mm
• B dimension 13.46mm
• C dimension 9.63mm
• D dimension 6.35mm
