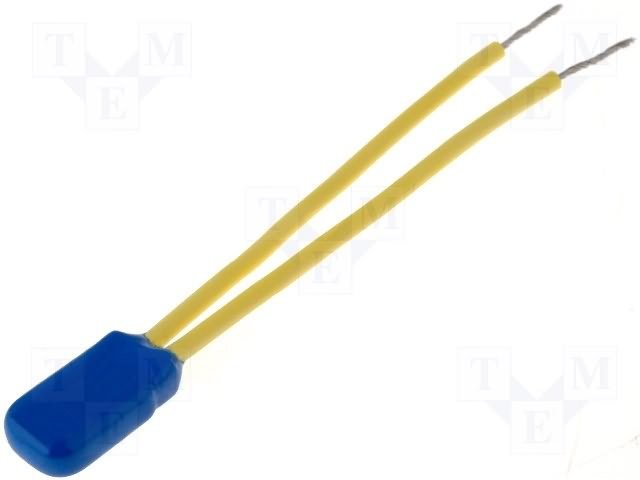

• Bimetallic thermostats (temperature dependant switches) with single contact NC, with 60 mm long leads.
• The AM03/1 thermostats are fitted with holder 24 x 10 mm, with hole Ø;4,3 mm, that enables direct fixation on a heatsink or equipment housing.
• Rated current (max) : AM03 - 2,5 A (3,6 A/2000 operations)
• : AB03 - 6,3 A (10 A/2000 operations)
• Maximal voltage : 250 V AC, 50-60 Hz
• Output contacts : NC
• Switching temperature tolerance : ±5°C
• Hysteresis : 30°C ±15°C
• Reaction time : max 50 s
• No. of operation at rated load : 10000
• Dimensions : AM03 - 8,6 x 18 x 4,5 (L x H x W)
• : AB03 - Ø;14,5 x 5,5 (dia. x H)
• Leads length : 60 mm
