• Manufacturer ZETTLER
• Type of transformer encapsulated
• Power 3.2VA
• Primary voltage 230V AC
• Secondary voltage 1 12V
• Secondary winding current 1 267mA
• Mounting PCB
• Thermal class T 70B
• Secondary winding terminals 7-9
• Primary winding terminals 1-5

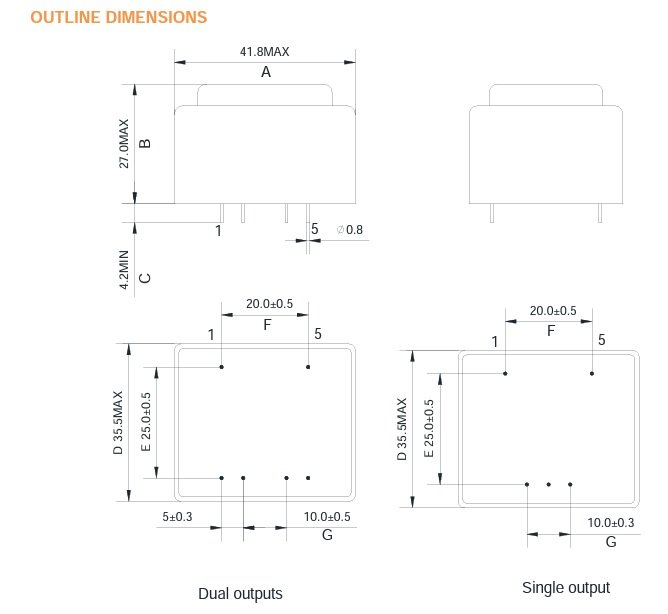

• Body dimensions 41.8x35.5x27mm
• Dimensions see
• Additional information
• Gross weight: 140 g
• Manufacturer part number: BV382S12032

Parametri

12VAC
1
267mA
3.2VA
