Apraksts

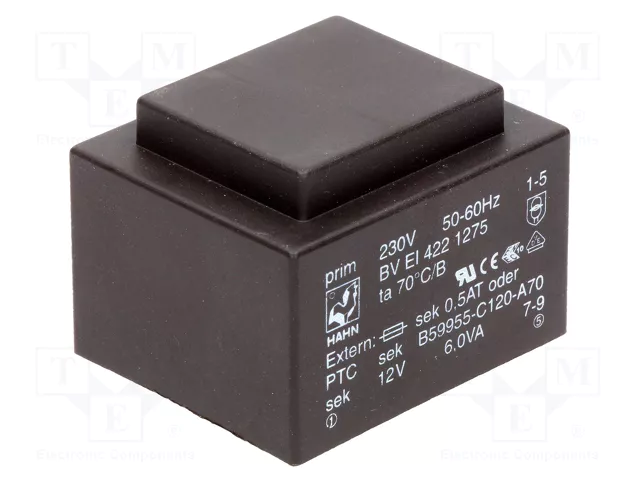

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 6VA
• Primary voltage 230V AC
• Secondary voltage 1 12V
• Secondary winding current 1 500mA
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000,  PN-EN 61558-2-1:2000,  PN-EN 61558-2-6:2000
• Thermal class Ta60B
• Secondary winding terminals 07.сен
• Primary winding terminals 01.май
• Weight 200g

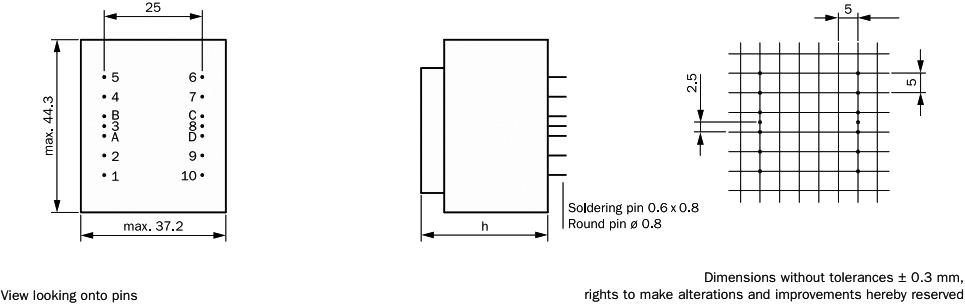

• A dimension 38mm
• A1 dimension 25mm
• A2 dimension 25mm
• B dimension 45mm
• C dimension 32mm
• Electrical insulation strength 4kV/60s
• Additional information
• Gross weight: 197 g
• Manufacturer part number: TEZ6/D230/12V

Parametri

12VAC
1
500mA
6VA
