Apraksts

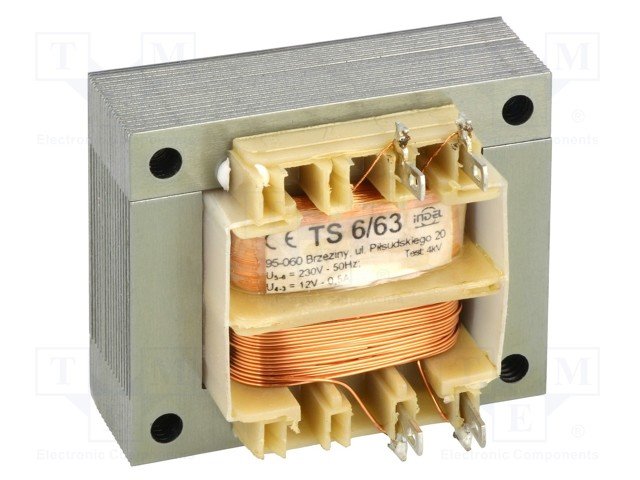

• Manufacturer INDEL
• Type of transformer mains
• Power 6VA
• Primary voltage 230V AC
• Secondary voltage 1 12V
• Secondary winding current 1 0.5A
• Leads solder lugs
• Mounting screw type
• IP rating IP00
• Thermal class Ta40B
• Conform to the norm PN-EN 61558
• Insulation class I
• Electrical insulation strength 4kV/60s
• Primary winding terminals 5-6
• Secondary winding terminals 4-3
• Additional information
• Gross weight: 240.5 g
• Manufacturer part number: TS 6/63

Parametri

12VAC
1
500mA
6VA

Papildu dokumentācija
