Apraksts

• Manufacturer INDEL
• Type of transformer encapsulated
• Power 45VA
• Primary voltage 230V AC
• Secondary voltage 1 24V
• Secondary winding current 1 1.87A
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B
• Secondary winding terminals 01.сен
• Primary winding terminals 01.июл
• Insulation class II
• Weight 900g

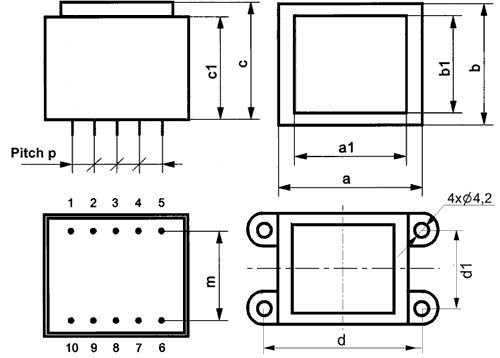

• A dimension 63.6mm
• A1 dimension 41.8mm
• B dimension 53.6mm
• B1 dimension 35.8mm
• C dimension 56.5mm
• C1 dimension 47.3mm
• D dimension 72.5mm
• D1 dimension 43.5mm
• M dimension 32.5mm
• P dimension 5mm
• Electrical insulation strength 4kV/60s
• Additional information
• Gross weight: 810.5 g
• Manufacturer part number: TSZZ45/013M/5

Parametri

24VAC
1
1870mA
45VA

Papildu dokumentācija
