Apraksts

• Specification

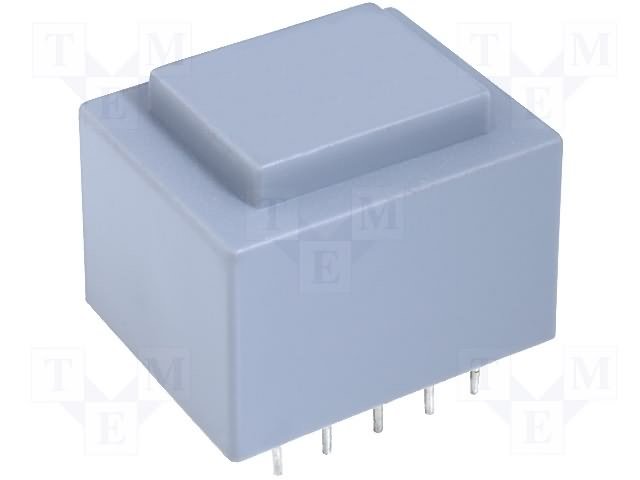

• Transformer type encapsulated
• Power 2VA
• Primary voltage 230V AC
• Secondary voltage 1 24V
• Secondary winding current 1 0.08A
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN61558
• Thermal class Ta40B

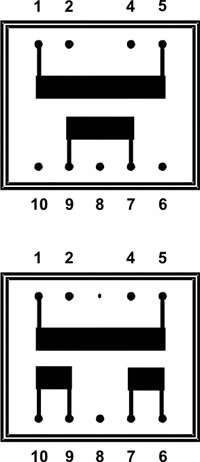

• Secondary winding terminals 7-9
• Primary winding terminals 1-5
• Weight 100g

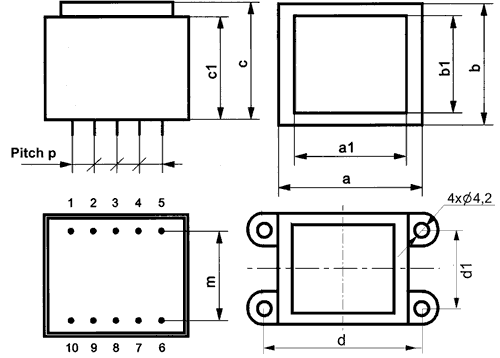

• A dimension 32.1mm
• B dimension 27.1mm
• C dimension 23.8mm
• Insulation class II
• A1 dimension 23.6mm
• P dimension 5.05mm
• B1 dimension 20.2mm
• C1 dimension 20.2mm
• D1 dimension 43.5mm
• M dimension 20mm
• D dimension 72.5mm

Parametri

24VAC
1
80mA
2VA

Papildu dokumentācija
