Apraksts

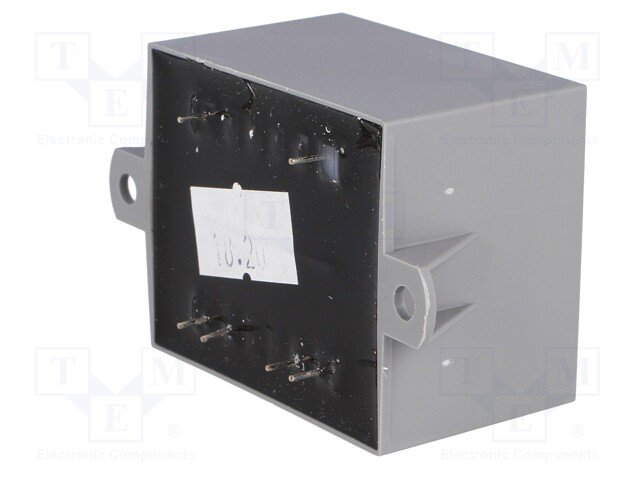

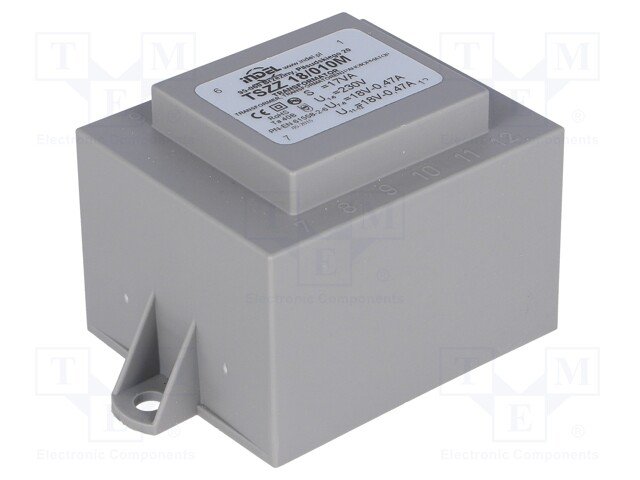

• Manufacturer INDEL
• Type of transformer encapsulated
• Power 18VA
• Primary voltage 230V AC
• Secondary voltage 1 18V
• Secondary voltage 2 18V
• Secondary winding current 1 0.5A
• Secondary winding current 2 0.5A
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B
• Secondary winding terminals 7-8, 11-12
• Primary winding terminals 1-6
• Insulation class II
• Weight 550g
• A dimension 52mm
• A1 dimension 35.6mm
• B dimension 44mm
• B1 dimension 34.6mm
• C dimension 41.5mm
• C1 dimension 35mm
• M dimension 37.5mm
• P dimension 5mm
• Electrical insulation strength 4kV/60s
• Additional information
• Gross weight: 337.4 g
• Manufacturer part number: TSZZ18/010M

Parametri

2x18VAC
2
2x445mA
16VA

Papildu dokumentācija
