Apraksts

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 2VA
• Primary voltage 230V AC
• Secondary voltage 1 18V
• Secondary voltage 2 18V
• Secondary winding current 1 55.5mA
• Secondary winding current 2 55.5mA
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000,  PN-EN 61558-2-1:2000,  PN-EN 61558-2-6:2000
• Thermal class Ta60B

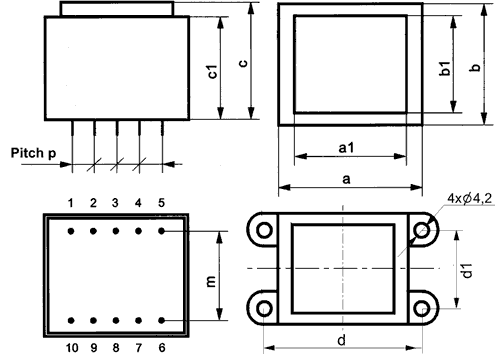

• Secondary winding terminals 6-7, 9-10
• Primary winding terminals 1-5
• Weight 90g
• A dimension 28mm
• A1 dimension 20mm
• A2 dimension 20mm
• B dimension 33mm
• C dimension 24mm
• Electrical insulation strength 4kV/60s
• Additional information
• Gross weight: 85 g
• Manufacturer part number: TEZ2/D230/18-18V

Parametri

2x18VAC
2
2x50mA
2VA
