Apraksts

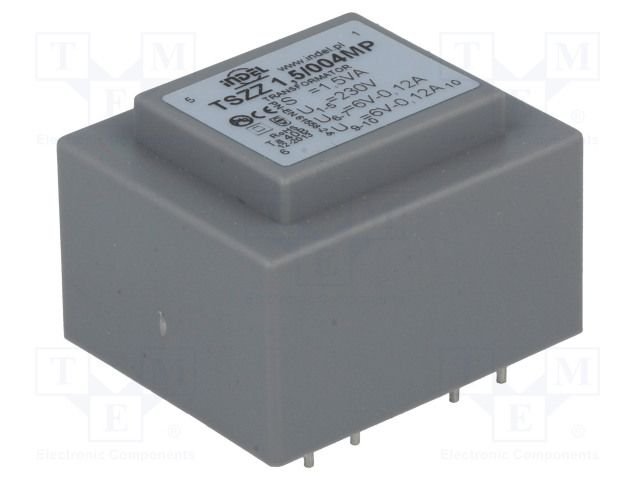

• Manufacturer INDEL
• Type of transformer encapsulated
• Power 1.5VA
• Primary voltage 230V AC
• Secondary voltage 1 6V
• Secondary voltage 2 6V
• Secondary winding current 1 0.1A
• Secondary winding current 2 0.1A
• Mounting PCB
• Electrical insulation strength 4kV/60s
• IP rating IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B

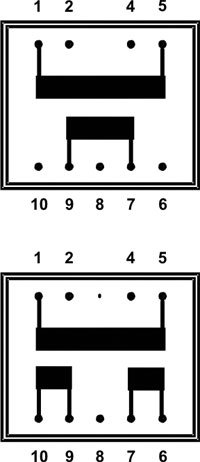

• Secondary winding terminals 6-7, 9-10
• Primary winding terminals 1-5
• Insulation class II
• Weight 90g

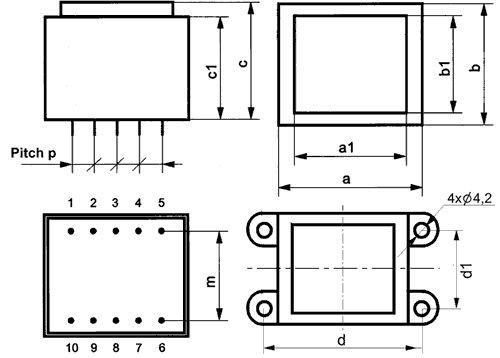

• A dimension 32.3mm
• A1 dimension 23.6mm
• B dimension 27.3mm
• B1 dimension 20.2mm
• C dimension 21.8mm
• C1 dimension 18.2mm
• M dimension 20mm
• P dimension 5.05mm

Parametri

2x6VAC
2
2x100mA
1.5VA
