Apraksts

• Specification

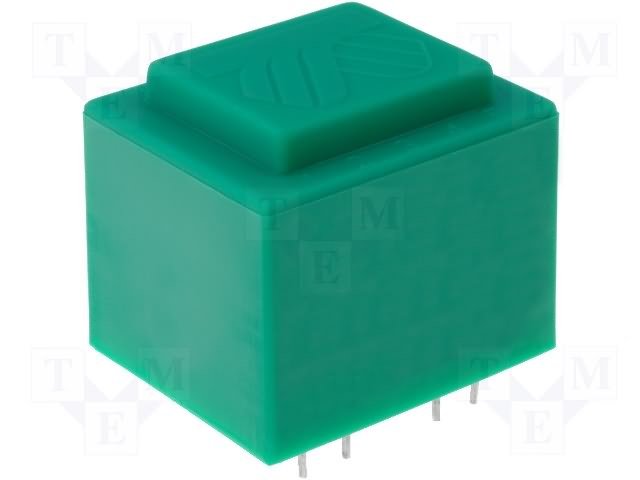

• Transformer type encapsulated
• Power 2.5VA
• Primary voltage 230V AC
• Secondary voltage 1 6V
• Secondary voltage 2 6V
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
• Thermal class Ta40B
• Secondary winding terminals 6-7, 9-10
• Primary winding terminals 1-5
• Weight 100g
• A dimension 28mm
• A1 dimension 20mm
• A2 dimension 20mm
• B dimension 33mm
• C dimension 27mm

Parametri

2x6VAC
2
2.5VA
2x210mA
