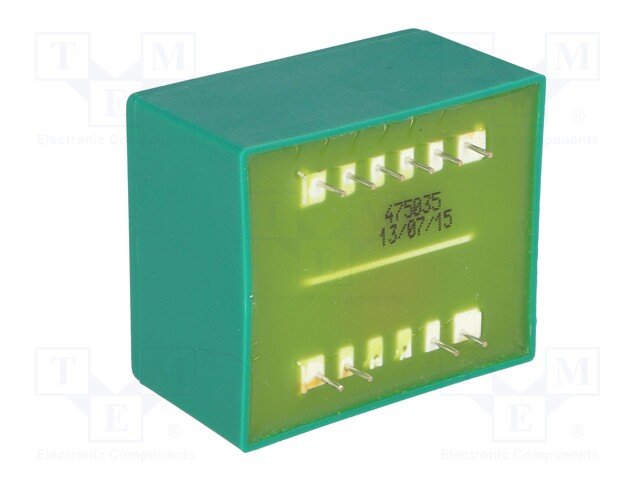

Transformators 220V=>2x6V, 2x833.3mA, 10VA, 44x53x27.9mm

Cena: 7.41 €
00005427
TEZ10/D/6-6V
2
  • Apraksts

    • Manufacturer BREVE TUFVASSONS
    • Type of transformer encapsulated
    • Power 10VA
    • Primary voltage 230V AC
    • Secondary voltage 1 6V
    • Secondary voltage 2 6V
    • Secondary winding current 1 833.3mA
    • Secondary winding current 2 833.3mA
    • Mounting PCB
    • IP rating IP00
    • Conform to the norm PN-EN 61558-1:2000,  PN-EN 61558-2-1:2000,  PN-EN 61558-2-6:2000
    • Thermal class Ta40B
    • Secondary winding terminals 7-8, 11-12
    • Primary winding terminals 1-6
    • Weight 280g
    • A dimension 44mm
    • A1 dimension 27.5mm
    • A2 dimension 25mm
    • B dimension 52mm
    • C dimension 35mm
    • Electrical insulation strength 4kV/60s

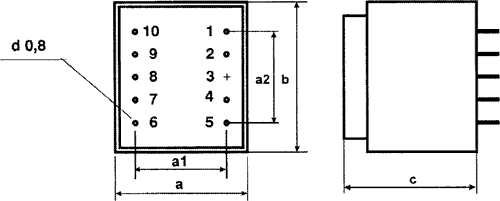

    • Dimensions paskatīt
    • Schematic diagram paskatīt
    • Papildu informācijas
    • Masa bruto: 295.76 g
    • Oriģināls simbols: TEZ10/D230/6-6V

    Parametri

    2x6VAC
    2
    2x830mA
    10VA
