Apraksts

• Manufacturer INDEL
• Type of transformer encapsulated
• Power 20VA
• Primary voltage 230V AC
• Secondary voltage 1 7.5V
• Secondary voltage 2 7.5V
• Secondary winding current 1 1.33A
• Secondary winding current 2 1.33A
• Mounting PCB
• IP rating IP00
• Conform to the norm PN EN 61558
• Thermal class Ta40B

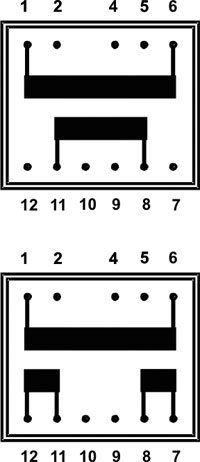

• Secondary winding terminals 8-9, 13-14
• Primary winding terminals 01.июл
• Insulation class II

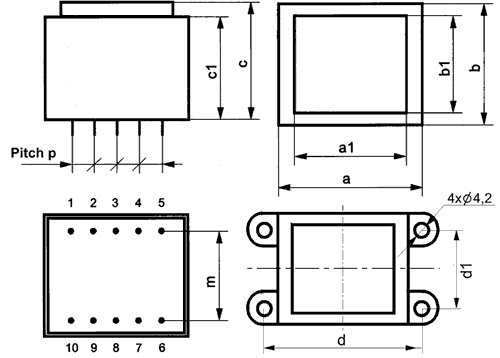

• A dimension 58.8mm
• A1 dimension 40.2mm
• B dimension 49.8mm
• B1 dimension 38.6mm
• C dimension 42.2mm
• C1 dimension 33.8mm
• D dimension 65mm
• D1 dimension 37.5mm
• M dimension 30mm
• P dimension 5mm
• Electrical insulation strength 4kV/60s

Parametri

2x7.5VAC
2
2x1330mA
20VA
