Apraksts

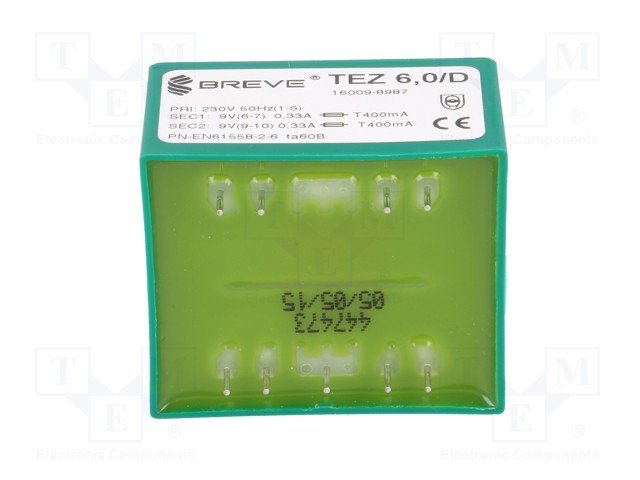

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 6VA
• Primary voltage 230V AC
• Secondary voltage 1 9V
• Secondary voltage 2 9V
• Secondary winding current 1 333.3mA
• Secondary winding current 2 333.3mA
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000,  PN-EN 61558-2-1:2000,  PN-EN 61558-2-6:2000
• Thermal class Ta60B
• Secondary winding terminals 6-7, 9-10
• Primary winding terminals 1-5
• Weight 200g
• A dimension 38mm
• A1 dimension 25mm
• A2 dimension 25mm
• B dimension 45mm
• C dimension 32mm
• Electrical insulation strength 4kV/60s
• Additional information
• Gross weight: 197.5 g
• Manufacturer part number: TEZ6/D230/9-9V

Parametri

2x9VAC
2
2x330mA
6VA
