Apraksts

• Specification

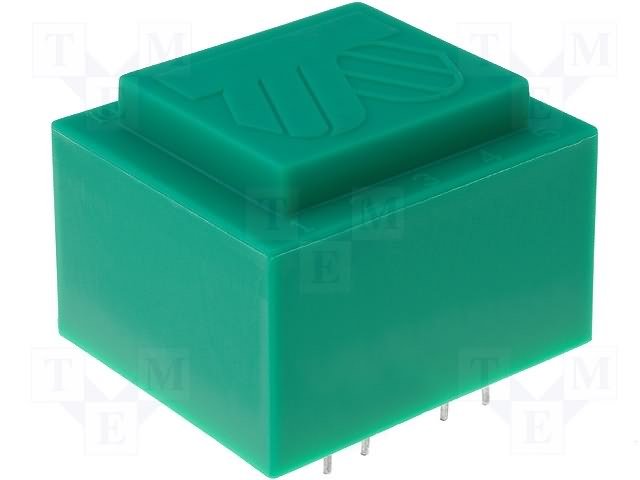

• Transformer type encapsulated
• Power 1.5VA
• Primary voltage 230V AC
• Secondary voltage 1 6V
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN61558-1:2000, PN-EN61558-2-1:2000, PN-EN61558-2-6:2000
• Thermal class Ta60B
• Secondary winding terminals 7-9
• Primary winding terminals 1-5
• Weight 70g

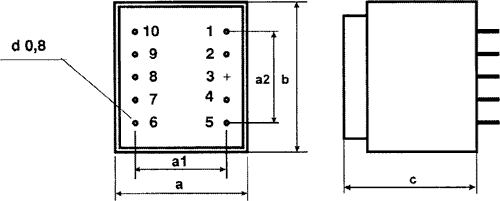

• A dimension 28mm
• B dimension 33mm
• C dimension 22mm
• A1 dimension 20mm
• A2 dimension 20mm

Parametri

6VAC
1
250mA
1.5VA

Papildu dokumentācija
