Apraksts

• Specification
• Transformer type encapsulated
• Power 3VA
• Primary voltage 230V AC
• Secondary voltage 1 6V
• Secondary winding current 1 0.5A
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN61558
• Thermal class Ta40B
• Secondary winding terminals 7-9
• Primary winding terminals 1-5
• Weight 150g

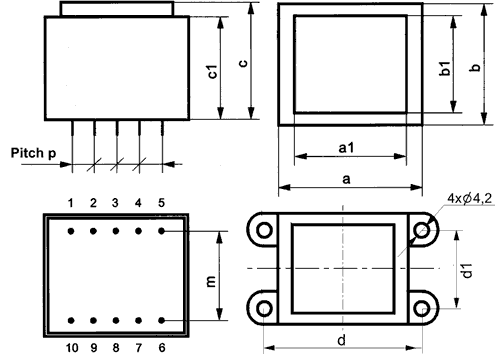

• A dimension 32.3mm
• B dimension 27.3mm
• C dimension 29mm
• Insulation class II
• A1 dimension 23.6mm
• P dimension 5.05mm
• B1 dimension 20.2mm
• C1 dimension 25.4mm
• D1 dimension 43.5mm
• M dimension 22mm
• D dimension 72.5mm

Parametri

6VAC
1
500mA
3VA
