Apraksts

• Manufacturer INDEL
• Type of transformer encapsulated
• Power 2.4VA
• Primary voltage 230V AC
• Secondary voltage 1 9V
• Secondary winding current 1 0.266A
• Mounting PCB
• Electrical insulation strength 4kV/60s
• IP rating IP00
• Conform to the norm PN-EN 61558
• Thermal class Ta40B
• Secondary winding terminals 7-9
• Primary winding terminals 1-5
• Insulation class II
• Weight 120g

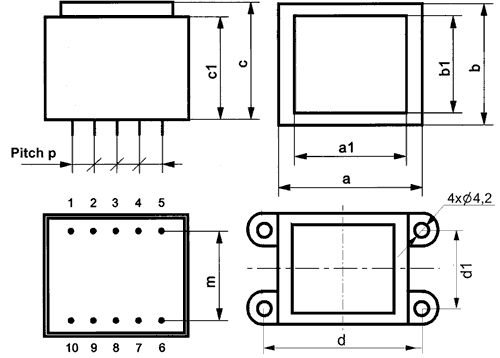

• A dimension 32.1mm
• A1 dimension 23.6mm
• B dimension 27.1mm
• B1 dimension 20.2mm
• C dimension 26.8mm
• C1 dimension 23.2mm
• M dimension 20mm
• P dimension 5.05mm

Parametri

9VAC
1
266mA
2.4VA
