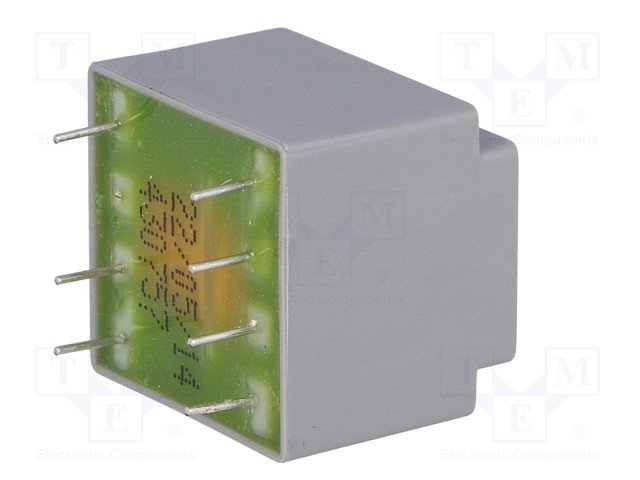

Apraksts

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 0.5VA
• Primary voltage 230V AC
• Secondary voltage 1 9V
• Secondary winding current 1 55.5mA
• Mounting PCB
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000,  PN-EN 61558-2-1:2000,  PN-EN 61558-2-6:2000
• Thermal class Ta60B
• Secondary winding terminals 6-7
• Primary winding terminals 1-4
• Weight 50g
• A dimension 22mm
• A1 dimension 15mm
• A2 dimension 15mm
• B dimension 24mm
• C dimension 19mm
• Electrical insulation strength 4kV/60s
• Additional information
• Gross weight: 36.5 g
• Manufacturer part number: TEZ0.5/D230/9V

Parametri

9VAC
1
50mA
0.5VA

Papildu dokumentācija
