Apraksts

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 4VA
• Primary voltage 400V AC
• Secondary voltage 1 12V
• Secondary winding current 1 333.3mA
• Mounting PCB
• IP rating IP00
• Conform to the norm PN EN 61558-1:2000 PN EN 61558-2-1:2000 PN EN 61558-2-6:2000
• Thermal class Ta60B
• Manufacturer series TEZ
• Secondary winding terminals 07.сен
• Primary winding terminals 01.май

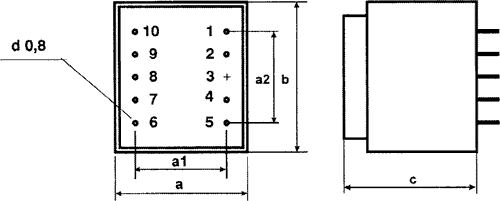

• A dimension 35mm
• A1 dimension 25mm
• A2 dimension 20mm
• B dimension 42mm
• C dimension 29mm
• Electrical insulation strength 4kV/60s
• Gross weight151.2 g

Parametri

12VAC
1
333mA
4VA

Papildu dokumentācija
