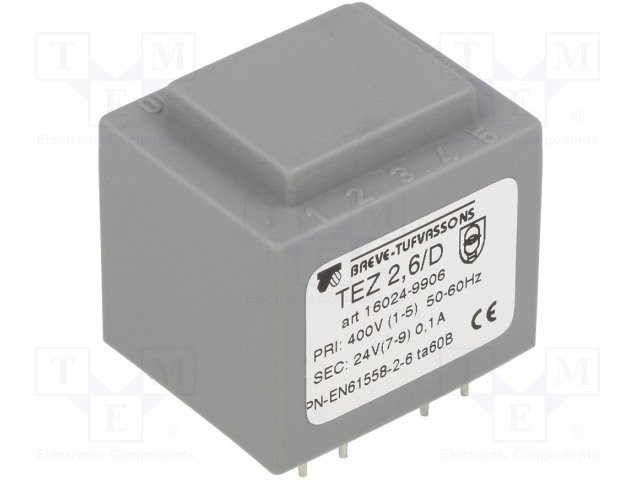

Apraksts

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 2.5VA
• Primary voltage 400V AC
• Secondary voltage 1 24V
• Secondary winding current 1 104.1mA
• Mounting PCB
• Electrical insulation strength 4kV/60s
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
• Thermal class Ta60B
• Secondary winding terminals 7-9
• Primary winding terminals 1-5
• Weight 120g
• A dimension 28mm
• A1 dimension 20mm
• A2 dimension 20mm
• B dimension 33mm
• C dimension 30mm

Parametri

24VAC
1
104mA
2.6VA
