Apraksts

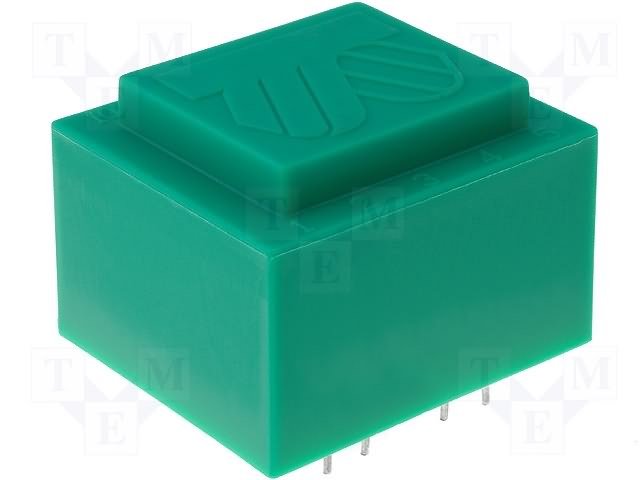

• Specification
• Transformer type encapsulated
• Power 4VA
• Primary voltage 400V AC
• Secondary voltage 1 24V
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
• Thermal class Ta60B
• Secondary winding terminals 7-9
• Primary winding terminals 1-5
• Weight 150g
• A dimension 35mm
• A1 dimension 25mm
• A2 dimension 20mm
• B dimension 42mm
• C dimension 29mm

Parametri

24VAC
1
166mA
4VA
