Apraksts

• Specification

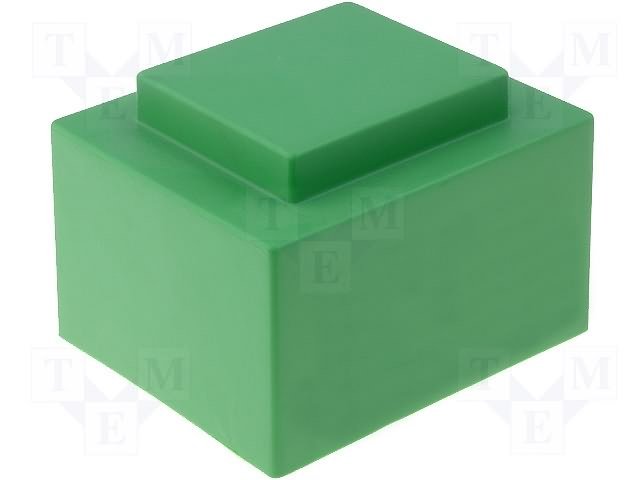

• Transformer type encapsulated
• Power 16VA
• Primary voltage 400V AC
• Secondary voltage 1 24V
• Mounting PCB
• Pri./sec. insulation strength 4kV/60s
• Sealing IP00
• Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
• Thermal class Ta40B
• Secondary winding terminals 9-13
• Primary winding terminals 1-7
• Weight 420g
• A dimension 47mm
• A1 dimension 30mm
• A2 dimension 30mm
• B dimension 57mm
• C dimension 39mm

Parametri

24VAC
1
660mA
16VA
