Apraksts

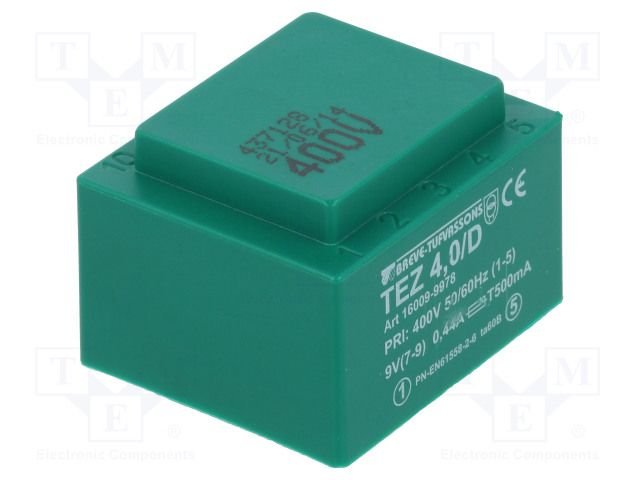

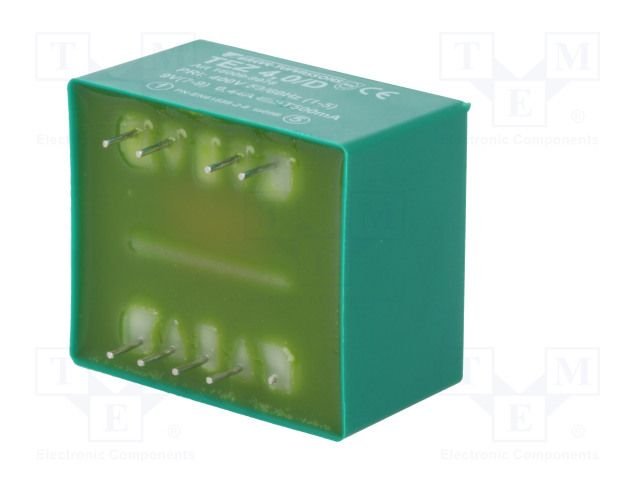

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 4VA
• Primary voltage 400V AC
• Secondary voltage 1 9V
• Secondary winding current 1 444.4mA
• Mounting PCB
• Electrical insulation strength 4kV/60s
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
• Thermal class Ta60B
• Secondary winding terminals 7-9
• Primary winding terminals 1-5
• Weight 150g
• A dimension 35mm
• A1 dimension 25mm
• A2 dimension 20mm
• B dimension 42mm
• C dimension 29mm

Parametri

9VAC
1
444mA
4VA
