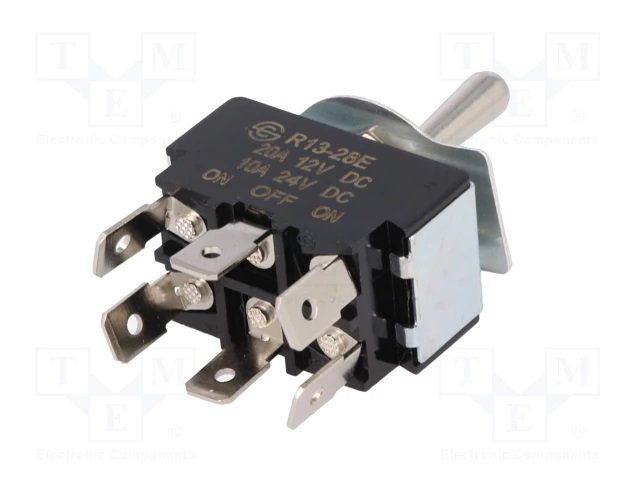

Apraksts

• Manufacturer SCI
• Type of switch toggle
• Number of positions 3
• Contacts configuration  DP3T
• Switching method  ON-OFF-ON
• (the position in bracket indicates momentary position.)
• DC contacts rating @R  20A / 12V DC
• (at resistive load)
• Leads connectors 6,3mm
• Terminals plating nickel
• Operating temperature 0...55°C
• Kind of toggle round

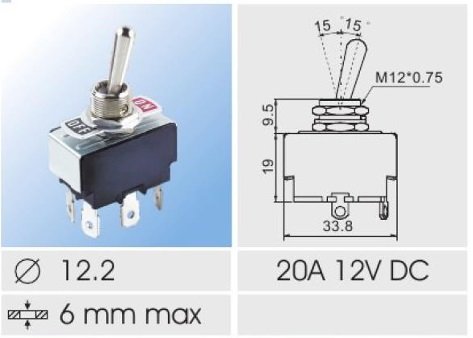

• Mounting hole diameter Ø12.2mm
• Knob height 18.4mm
• Max. contact resistance: 50mΩ
• Body dimensions 33.2x19x19mm
• Actuator material metal
• Related items R1710A
• Panel thickness max. 6mm
• Test voltage 1.5kV
• Manufacturer series R13-28
• Stable positions number 3
• Panel cutout see
• Dimensions see
• Additional information
• Gross weight: 29.69 g
• Manufacturer part number: R13-28E-01-HPH
• Contact plating silver plated
• Dimensions see
• Additional information
• Gross weight: 2.175 g
• Manufacturer part number: 2-1419130-4

Parametri

DP3T
20A/12VDC
ON-OFF-ON
3
IP00
3
Tumblers
Ar fiksāciju
M12
2
Bez apgaismojuma

Papildu dokumentācija
