Apraksts

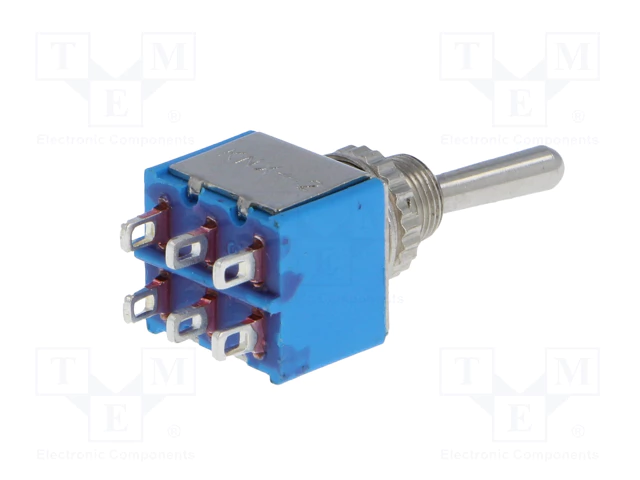

• Manufacturer NINIGI
• Type of switch toggle
• Number of positions 2
• Contacts configuration DPDT
• Contacts configuration
• Switching method(the position in bracket indicates momentary position.) ON-ON
• The position in bracket indicates momentary position.
• AC contacts rating @R(at resistive load) 3A / 250V AC
• at resistive load
• Leads for soldering
• Operating temperature -55...85°C
• Kind of toggle round

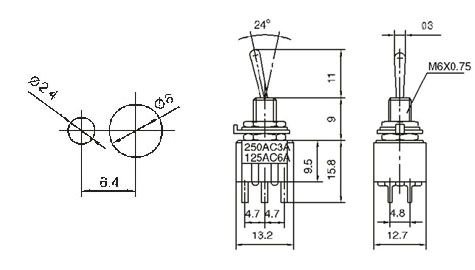

• Mounting hole diameter Ø6mm
• Knob height 11mm
• Max. contact resistance: 20mΩ
• Body dimensions 12,5x11,5x9,5mm
• Electrical life 20000 cykli
• Actuator material metal
• Related items TSX-CAP-RED
• Stable positions number 2
• Masa bruto5.32 g

Parametri

DPDT
3A/250VAC
ON-ON
2
IP00
2
Tumblers
Ar fiksāciju
M6
2
Bez apgaismojuma

Papildu dokumentācija
