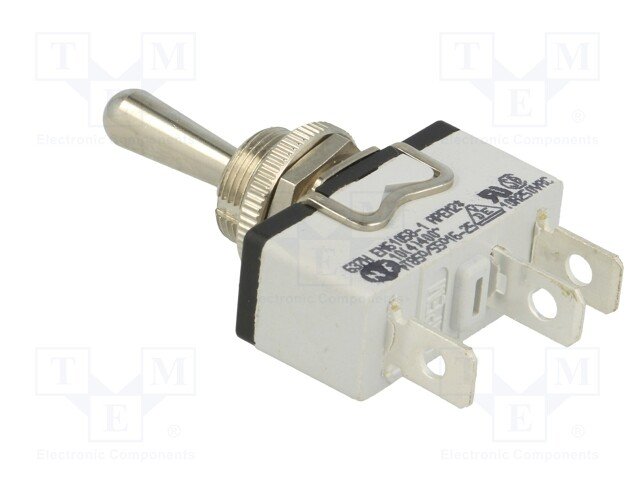

Tumblers, SP3T, (ON)-OFF-(ON), 10A/250VAC, 5A/24VDC, lodēšanai, M12, 29.5x14.5x15mm, APEM, bez fiksacijas

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Tumblers, SP3T, (ON)-OFF-(ON), 10A/250VAC, 5A/24VDC, lodēšanai, M12, 29.5x14.5x15mm, APEM, bez fiksacijas

Cena: 7.80 €
00015899
637H/2
2
  • Apraksts

    • Manufacturer APEM
    • Type of switch toggle
    • Number of positions 3
    • Contacts configuration  SP3T
    • Switching method  (ON)-OFF-(ON)
    • AC contacts rating @R  10A / 250V AC
    • DC contacts rating @R  5A / 25V DC
    • Leads 6,35x0,8mm connectors,  for soldering
    • Operating temperature -20...55°C
    • Kind of toggle round
    • Mounting hole diameter Ø12.2mm
    • Knob height 17.5mm
    • Max. contact resistance: 10mΩ
    • Body dimensions 29.5x14x15mm
    • Electrical life 10000 cycles
    • Contact plating silver nickel alloy
    • Min. insulation resistance 1000MΩ
    • Manufacturer series 600H
    • Related items U598,  U600,  U851,  U853,  U1151,  U1153,  U1565,  U1567
    • Panel thickness max. 4.5mm
    • Stable positions number 1
    • Additional information
    • Gross weight: 26.546 g
    • Manufacturer part number: 637H/2

    Parametri

    SP3T
    10A/250VAC
    (ON)-OFF-(ON)
    3
    IP00
    1
    Tumblers
    Ar fiksāciju
    M12
    1
    Bez apgaismojuma
    5A/24VDC
