Apraksts

• Manufacturer APEM
• Type of switch toggle
• Number of positions 2
• Contacts configuration SPDT
• Switching method(the position in bracket indicates momentary position.) ON-ON
• AC contacts rating @R(at resistive load) 15A / 250V AC
• DC contacts rating @R(at resistive load) 15A / 12V DC
• Leads connectors 6,35x0,8mm, for soldering
• Operating temperature -20...55°C
• Kind of toggle round

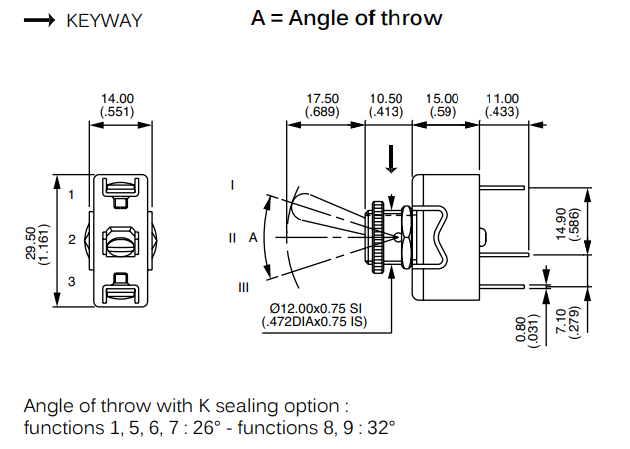

• Mounting hole diameter Ø12.2mm
• Knob height 17.5mm
• Max. contact resistance: 10mΩ
• Body dimensions 29.5x14x15mm
• Electrical life 10000 cycles
• Contact plating silver nickel alloy
• Min. insulation resistance 1GΩ
• Related items U598, U600, U851, U853, U1151, U1153, U1565, U1567
• Panel thickness max. 4.5mm
• Manufacturer series 600H
• Stable positions number 2
• Masa bruto19.13 g

Parametri

SPDT
15A/250VAC
15A/12VDC
ON-ON
2
IP00
2
Tumblers
Ar fiksāciju
M12
1
Bez apgaismojuma
