Apraksts

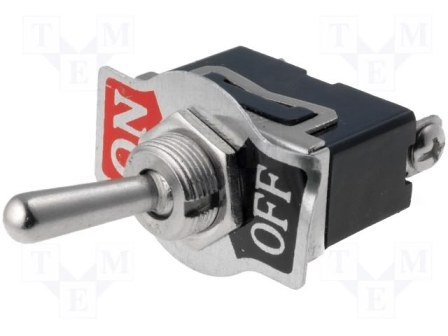

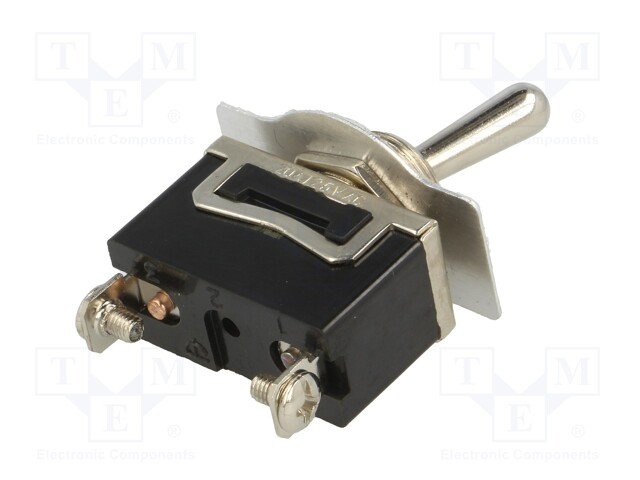

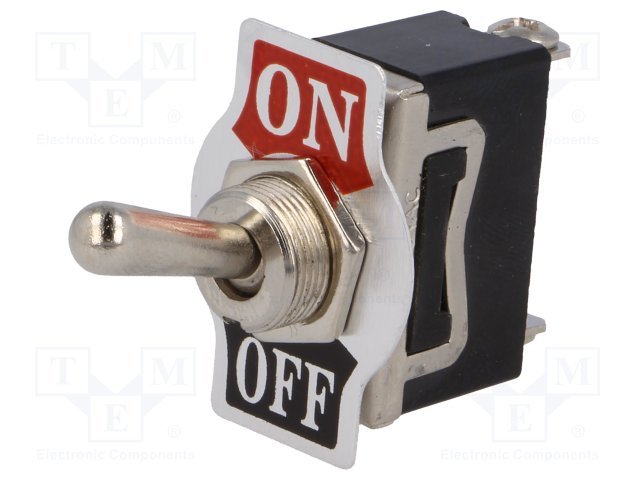

• Type of switch toggle
• Number of positions 2
• Contacts configuration  SPST
• Switching method  OFF-ON
• AC contacts rating @R  15A / 250V AC
• Leads M3 screws
• Operating temperature -25...85°C
• Kind of toggle round
• Mounting hole diameter Ø12.2mm
• Knob height 17.5mm
• Max. contact resistance: 50mΩ
• Body dimensions 29x15.8x19mm
• Electrical life 10000 cycles
• Related items TSPC02
• Stable positions number 2
• Panel cutout see
• Additional information
• Gross weight: 23.333 g
• Manufacturer part number: TSP101AAA1

Parametri

SPST-NO
10A/250VAC
OFF-ON
2
IP00
2
Tumblers
Ar fiksāciju
M12
1
Bez apgaismojuma

Papildu dokumentācija
