Apraksts

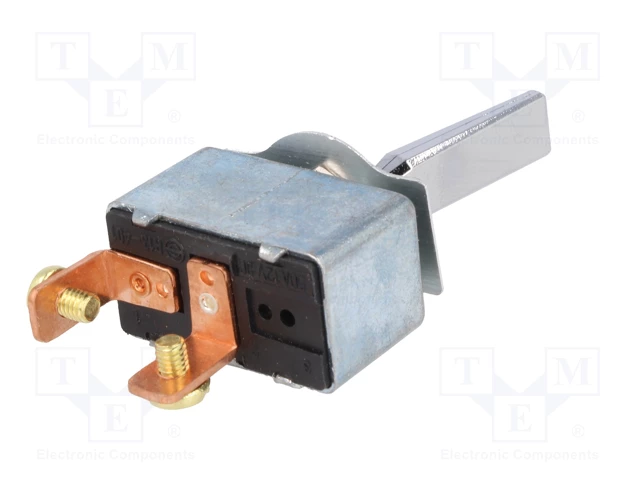

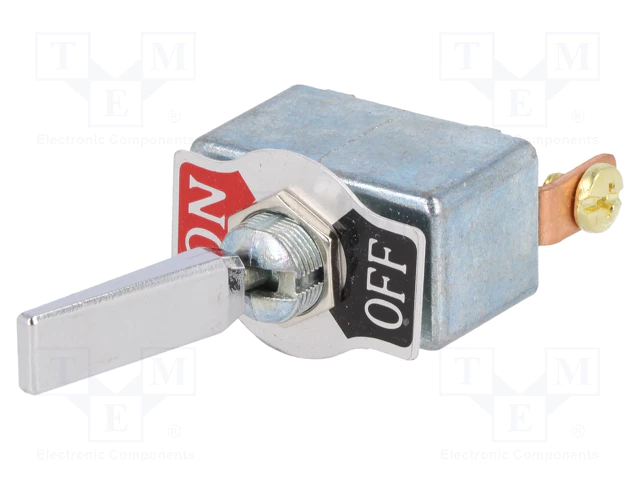

• Manufacturer SCI
• Type of switch toggle
• Number of positions 2
• Contacts configuration SPST
• Contacts configuration
• Switching method(the position in bracket indicates momentary position.) ON-OFF
• The position in bracket indicates momentary position.
• DC contacts rating @R(at resistive load) 50A / 12V DC
• at resistive load
• Leads M4 screws
• Manufacturer series R13-401
• Terminals plating nickel
• Operating temperature -20...85°C
• Kind of toggle flat

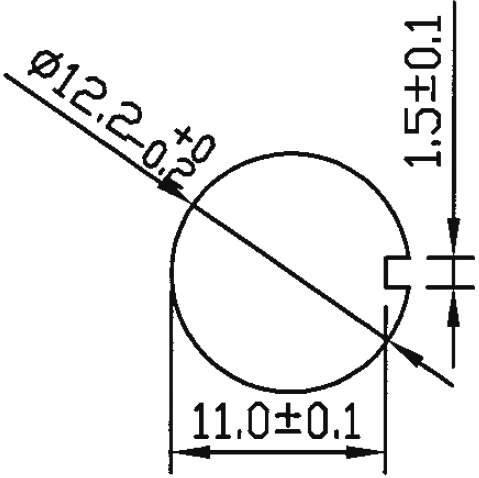

• Mounting hole diameter Ø12.2mm
• Knob height 28.8mm
• Max. contact resistance: 50mΩ

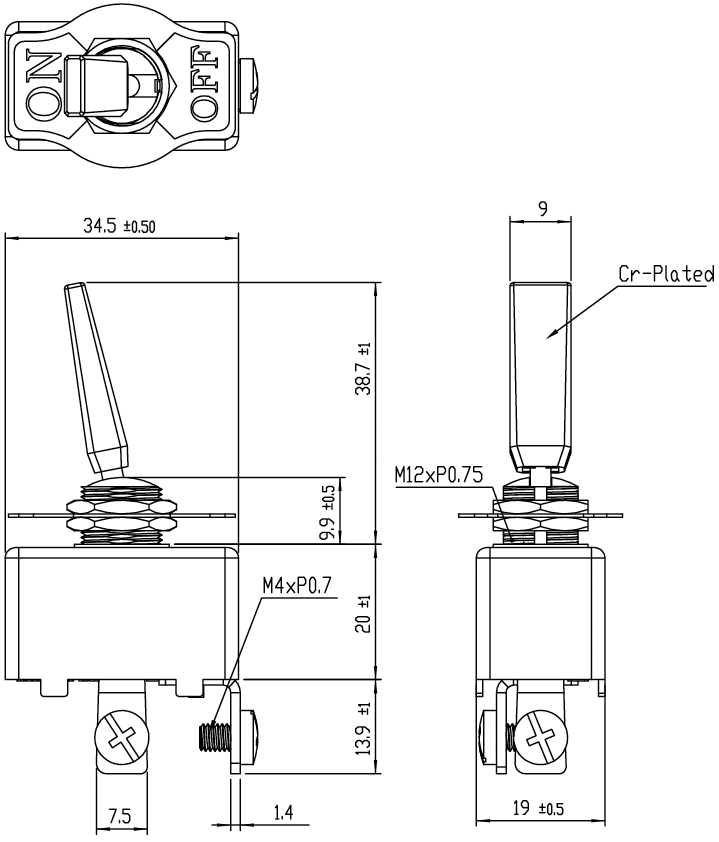

• Body dimensions 34.5x19x20mm
• Actuator material metal
• Panel thickness max. 3mm
• Test voltage 1.5kV
• Stable positions number 2
• Gross weight42.1 g

Parametri

SPST
50A/12VDC
OFF-ON
2
IP40
2
Tumblers
Ar fiksāciju
M12
1
Bez apgaismojuma
