Apraksts

• Manufacturer GCT
• Type of connector USB C
• Connector socket
• Electrical mounting SMT
• Number of pins 24
• Spatial orientation vertical
• Information about relative position of each cable, terminals or PCB entry
• Connector variant top board mount
• Version USB 3.2
• Current rating 5A
• Rated voltage 48V DC
• For products in the Cables and Wires category, a digit/digit number indicates:
• Rated volage U0/U
• where:
• U0 = cable nominal voltage between the conductor and the metal covering or earth
• U = cable nominal voltage between the phase conductors
• Mechanical durability 20000 cycles
• Gross weight0.813 g

Parametri

USB-C
Ligzda
3.2

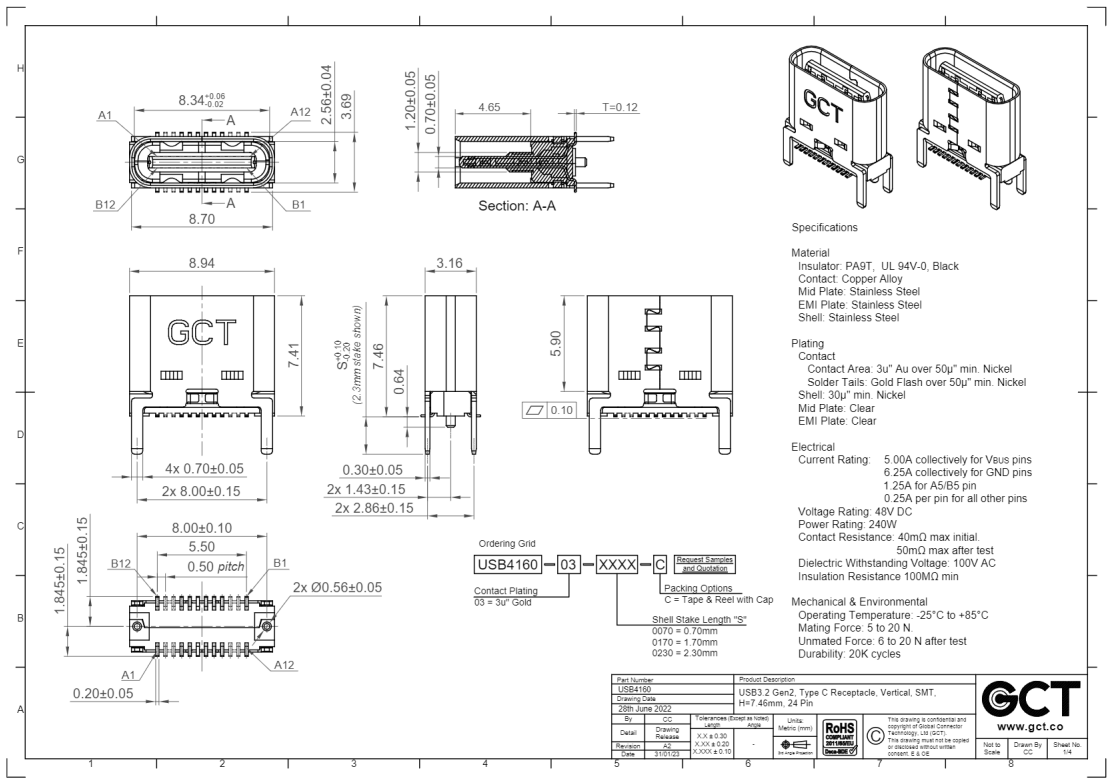

Papildu dokumentācija
