Apraksts

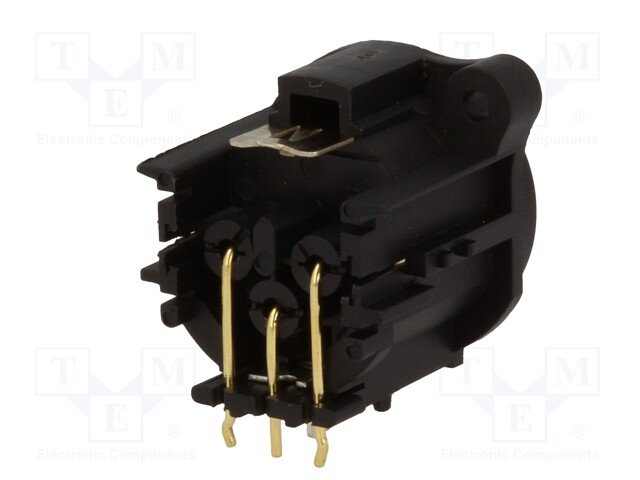

• Manufacturer AMPHENOL
• Connector type XLR
• Connector socket
• Flammability rating UL94V-0
• Operating temperature -25...75°C
• Electrical mounting THT
• Contact plating gold plated
• Rated voltage 133 V
• Rated current 6 A
• Max. contact resistance: 3 mΩ;
• Min. insulation resistance 1000 MΩ;
• Body material thermoplastic
• Mechanical mounting screwed

Parametri

3pin
Spraudnis
XLR
THT

Papildu dokumentācija
