Apraksts

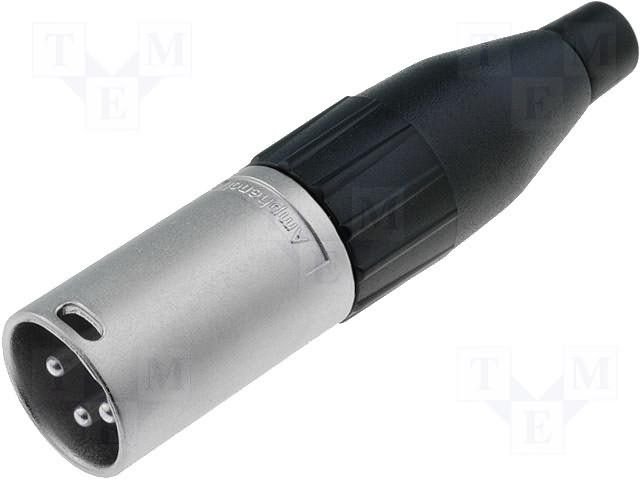

• Manufacturer AMPHENOL
• Connector plug
• Connector type XLR
• Connector type male
• Number of pins 3
• Spatial orientation straight
• Connector variant turned contacts
• Mechanical mounting for cable
• Electrical mounting soldering
• Max. cable diameter 6.5mm
• Contact material brass
• Contact plating silver plated
• Operating temperature -25...75°C
• Flammability rating UL94V-0
• Rated voltage 133V
• Rated current 15A
• Enclosure material zinc alloy
• Sealing IP40
• Body coating glazed
• Wire size 14AWG

Parametri

3pin
Spraudnis
XLR
Vadam

Papildu dokumentācija
