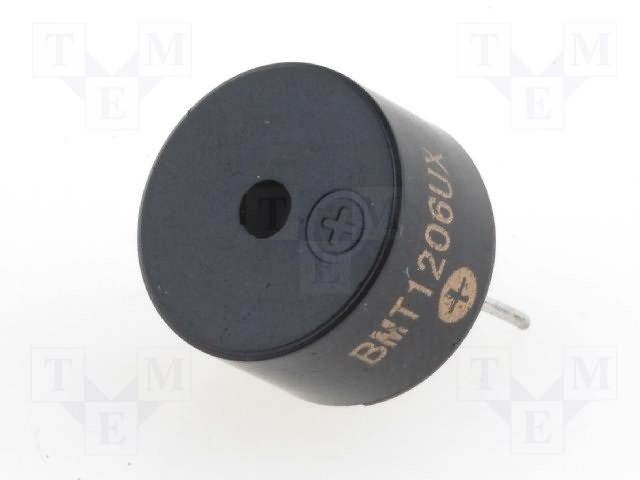

Zummers, 3-7V, 30mA, 85dB, 2300Hz, Ø12x7.5mm
Zummers, 3-7V, 30mA, 85dB, 2300Hz, Ø12x7.5mm
Zummers, 3-7V, 30mA, 85dB, 2300Hz, Ø12x7.5mm Zummers, 3-7V, 30mA, 85dB, 2300Hz, Ø12x7.5mm

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Zummers, 3-7V, 30mA, 85dB, 2300Hz, Ø12x7.5mm

Cena: 1.10 €
00021584
LD-BZEG-1205
0
  • Apraksts

    • Manufacturer LOUDITY
    • Type of sound transducer electromagnetic alarm
    • Sound transducer features with built-in generator
    • Mounting THT
    • Resonant frequency 2.3kHz
    • Operating current 30mA
    • Operating temperature -20...70°C

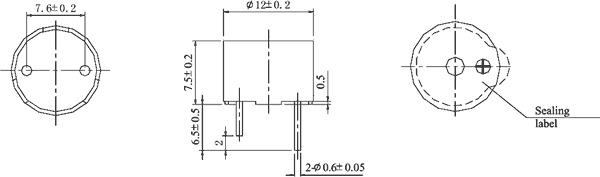

    • Diameter 12mm
    • Height 7.5mm
    • Operating voltage 3...7V DC
    • Sound level 85dB
    • Resonant frequency tolerance ±0.4kHz
    • Terminal pitch 7.6mm
    • Additional information
    • Gross weight: 1.7 g
    • Manufacturer part number: LD-BZEG-1205
