Apraksts

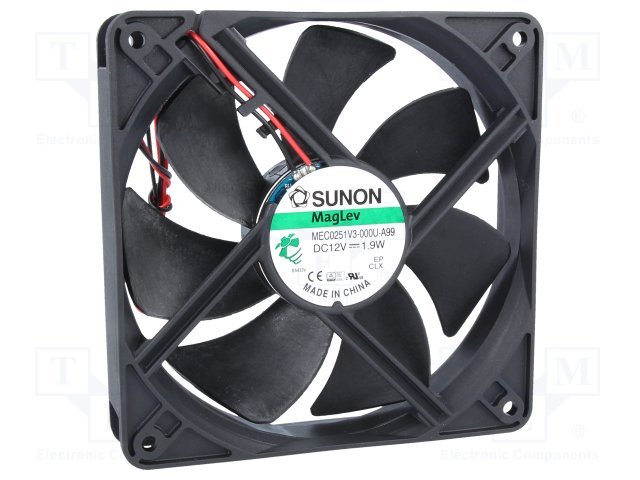

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Operating voltage 6...13.8V
• Fan dimensions 120x120x25mm
• Power consumption 1.9W
• Current rating 161mA
• Fan efficiency 127.4m3/h
• Noise level 34dBA
• Kind of Bearing Vapo
• Rotational rate/speed 2200 (±10%)rpm
• Weight 162g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Static pressure 4.06mm H2O
• Cable length 330mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 24AWG
• Additional functions Autorestart

Parametri

120x120x25mm
12VDC
uz ass
MagLev
34dBA
2200apgr.
1.9W
118.8m3/st

Papildu dokumentācija
