Apraksts

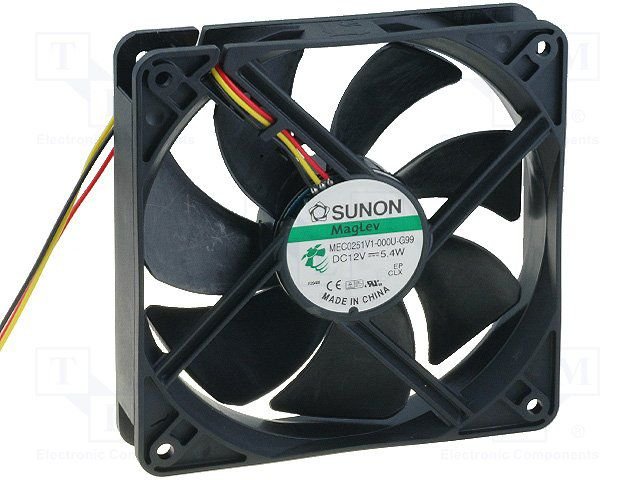

• Manufacturer SUNON
• Fan type DC
• Fan kind axial
• Supply voltage 12V DC
• Operating voltage 6...13.8V
• Fan dimensions 120x120x25mm
• Power consumption 5.4W
• Rated current 0.451A
• Fans efficiency 183.83m3/h
• Noise level 44.5dBA
• Bearing type Vapo
• Signal output F type
• Rotational rate/speed 3100 (±10%)rpm
• Weight 162g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Operating temperature -10...70°C
• Leads 3 leads
• Static pressure 7.11mm H2O
• Flammability rating UL94V-0
• Fan motor brushless DC motor
• Cable length 330mm
• Wire size 24AWG
• Additional functions Autorestart

Parametri

120x120x25mm
12VDC
uz ass
MagLev
183.83m3/st
44.5dBA
3100apgr.
5.4W

Papildu dokumentācija
