Apraksts

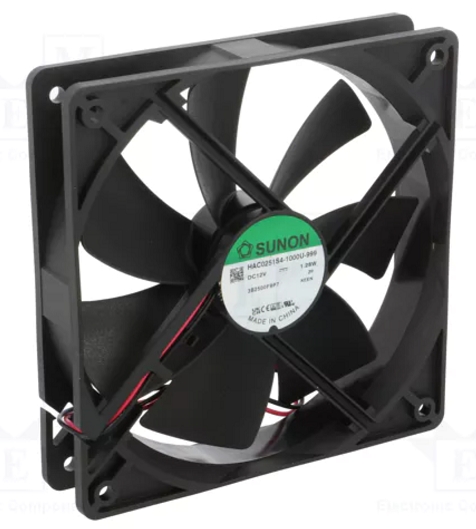

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 4.5...13.8V DC
• Fan dimensions 120x120x25mm
• Power consumption 1.06W
• Fan efficiency 93.6m3/h
• Noise level 28.8dBA
• Kind of Bearing slide
• Rotational rate/speed 1600rpm
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads leads x2
• Operating temperature -10...70°C
• Flammability rating UL94V-0
• Additional functions autorestart
• Fan motor brushless DC
• Show similar products (2 142)
• Supply voltage
• 12V DC
• Gross weight110.57 g

Parametri

120x120x25mm
12VDC
uz ass
slīdgultnis
93.5m3/st
29dBA
1600apgr.
1.06W

Papildu dokumentācija
