Apraksts

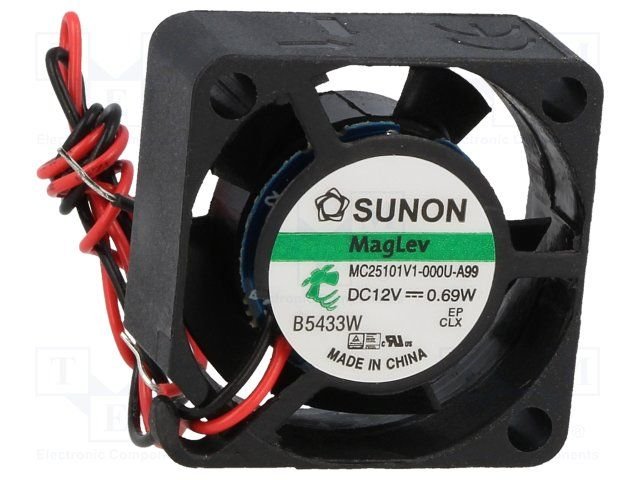

• Manufacturer SUNON
• Fan type DC
• Fan kind axial
• Supply voltage 12V DC
• Operating voltage 4.5...13.8V
• Fan dimensions 25x25x10mm
• Power consumption 690mW
• Rated current 57mA
• Fans efficiency 5.95m3/h
• Noise level 23dBA
• Bearing type Vapo
• Rotational rate/speed 13000rpm
• Weight 7.5g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 500MΩ
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Operating temperature -10...70°C
• Leads 2 leads
• Static pressure 6.35mm H2O
• Cable length 150mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 28AWG
• Additional functions Autorestart

Parametri

25x25x10mm
12VDC
uz ass
MagLev
5.95m3/st
23dBA
13000apgr.
0.69W

Papildu dokumentācija
