Apraksts

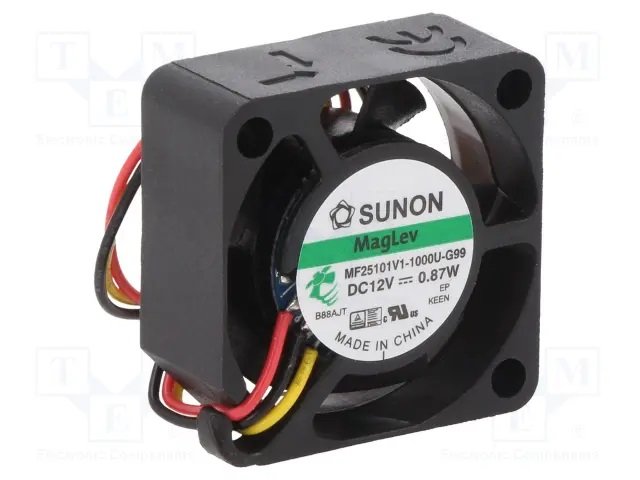

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 25x25x10mm
• Power consumption 600mW
• Current rating 50mA
• Fan efficiency 6.42m3/h
• Noise level 26dBA
• Kind of Bearing Vapo
• Signal output F type
• Rotational rate/speed 14000rpm
• Weight 6.8g
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 3 leads
• Operating temperature -10...70°C
• Cable length 150mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Static pressure 6.86mm H2O
• Additional functions Autorestart
• Operating voltage 6...13.8V
• Wire size 28AWG Additional information
• Gross weight: 7 g
• Manufacturer part number: MF25101V1-1000U-G99

Parametri

25x25x10mm
12VDC
uz ass
MagLev
6.42m3/st
26dBA
14000apgr.
0.87W

Papildu dokumentācija
