Apraksts

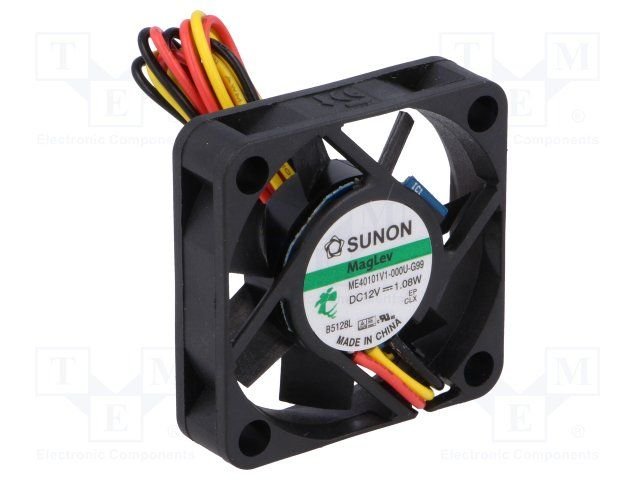

• Manufacturer SUNON
• Fan type DC
• Fan kind axial
• Supply voltage 12V DC
• Operating voltage 4.5...13.8V
• Fan dimensions 40x40x10mm
• Power consumption 1.08W
• Rated current 0.09A
• Fans efficiency 13.6m3/h
• Noise level 32dBA
• Bearing type Vapo
• Signal output F type
• Rotational rate/speed 7000 (±15%)rpm
• Weight 13.5g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class E
• Operating temperature -10...70°C
• Leads 3 leads
• Static pressure 4.82mm H2O
• Cable length 300mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 26AWG
• Additional functions Autorestart

Parametri

40x40x10mm
12VDC
uz ass
MagLev
13.6m3/st
32dBA
7000apgr.
18W
