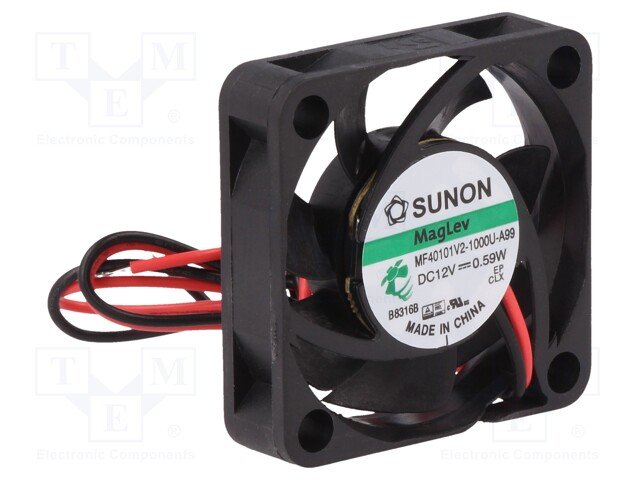

40x40x10mm, DC12V, MagLev,11.89m3/h, 20.6dB, 5800RPM, 0.58W Ventilators
40x40x10mm, DC12V, MagLev,11.89m3/h, 20.6dB, 5800RPM, 0.58W Ventilators
40x40x10mm, DC12V, MagLev,11.89m3/h, 20.6dB, 5800RPM, 0.58W Ventilators 40x40x10mm, DC12V, MagLev,11.89m3/h, 20.6dB, 5800RPM, 0.58W Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

40x40x10mm, DC12V, MagLev,11.89m3/h, 20.6dB, 5800RPM, 0.58W Ventilators

Cena: 5.54 €
00020671
MB40101V2-A99
12
  • Apraksts

    • Manufacturer SUNON
    • Type of fan DC
    • Kind of fan axial
    • Supply voltage 12V DC
    • Operating voltage 6...13.8V
    • Fan dimensions 40x40x10mm
    • Power consumption 0.59W
    • Current rating 0.04A
    • Fan efficiency 11.89m3/h
    • Noise level 20.6dBA
    • Kind of Bearing Vapo
    • Rotational rate/speed 5800rpm
    • Min. insulation resistance 10MΩ
    • Impeller material thermoplastic
    • Enclosure material thermoplastic
    • Leads 2 leads
    • Operating temperature -10...70°C
    • Cable length 300mm
    • Flammability rating UL94V-0
    • Additional functions Autorestart
    • Fan motor brushless DC
    • Static pressure 3.05mm H2O
    • Related items SR4-15.5
    • Wire size 26AWG
    • Papildu informācijas
    • Masa bruto: 14.5 g
    • Oriģināls simbols: MF40101V2-1000U-A99

    Parametri

    40x40x10mm
    12VDC
    uz ass
    MagLev
    11.89m3/st
    20.6dBA
    5800apgr.
    0.58W
