Apraksts

• Specification
• Fan type DC

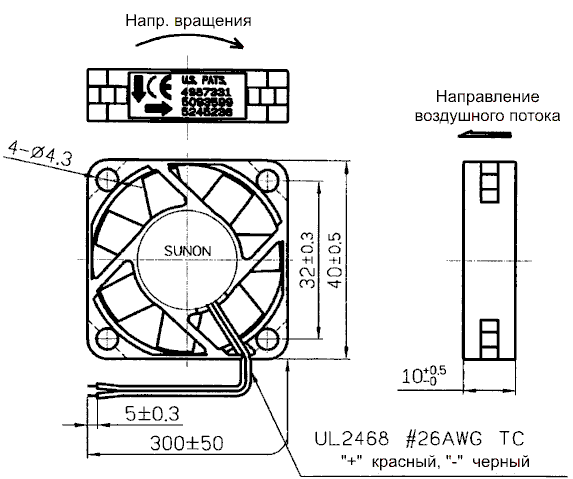

• Fan dimensions 40x40x10mm
• Bearing type slide bearing
• Supply voltage 12V DC
• Fans maximum flow rate 13.59m3/h
• Noise level 32dBA
• Rotational rate/speed 7000 (±20%)rpm
• Power consumption 1.3W
• Static pressure 4.82mm H2O
• Operating voltage range 6 ÷; 13.8V
• Weight 17g
• Rated current 110mA
• Current and power consumption tolerance ±15%
• Min. insulation resistance 500MΩ;
• Fan material thermoplastic PBT
• Housing material thermoplastic PBT
• Insulation class E
• Leads 2 300mm leads AWG28
• Operating temperature -10...70°C
• Flammability rating UL94V-0
• Fan motor brushless DC motor

Parametri

40x40x10mm
12VDC
uz ass
slīdgultnis
11.99m3/st.
23dBA
6100apgr.
0.96W

Papildu dokumentācija
