Apraksts

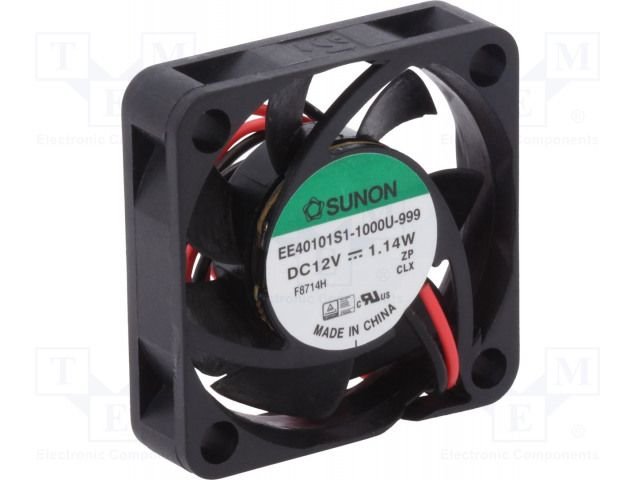

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 40x40x10mm
• Power consumption 1.14W
• Current rating 82mA
• Fan efficiency 13.87m3/h
• Noise level 28.8dBA
• Kind of Bearing slide bearing
• Rotational rate/speed 7300rpm
• Weight 15.6g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 300mm
• Static pressure 4.83mm H2O
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Operating voltage 4.5...13.8V
• Wire size 26AWG Additional information
• Gross weight: 14.8 g

Parametri

40x40x10mm
12VDC
uz ass
slīdgultnis
13.87m3/st
28.8dBA
7300apgr.
1.14W

Papildu dokumentācija
