Apraksts

• Specification
• Fan type AC

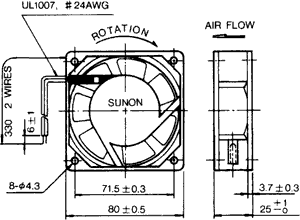

• Fan dimensions 80x80x25mm
• Bearing type slide bearing
• Fans efficiency 28.9 (±5%)m3/h
• Noise level 29dBA
• Supply voltage 230V AC
• Power consumption 14W
• Rotational rate/speed 2300rpm
• Weight 260g
• Rated current 70mA
• Current and power consumption tolerance ±15%
• Frequency 50Hz
• Min. insulation resistance 500MΩ;
• Fan material thermoplastic
• Enclosure material aluminium
• Insulation class B
• Operating temperature -10...70°C
• Static pressure 3.05mm H2O
• Leads 2 leads
• Flammability rating UL94V-0
• Cable length 330mm
• Wire size 24AWG

Parametri

80x80x25mm
230VAC
uz ass
slīdgultnis
28.9m3/st
29dBA
2300apgr.
14W

Papildu dokumentācija
