Apraksts

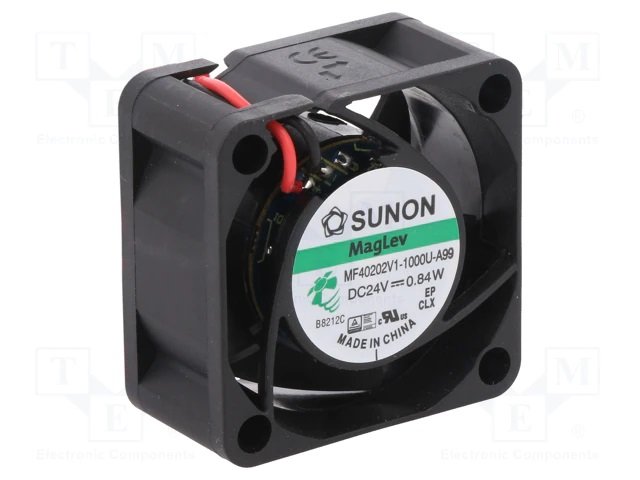

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 24V DC
• Fan dimensions 40x40x20mm
• Power consumption 0.77W
• Current rating 0.032A
• Fan efficiency 15.04m3/h
• Noise level 25.5dBA
• Kind of Bearing Vapo
• Rotational rate/speed 7000rpm
• Weight 29g
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 305mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Static pressure 5.59mm H2O
• Additional functions Autorestart
• Operating voltage 8...27.6V
• Wire size 26AWG Additional information
• Gross weight: 28.1 g
• Manufacturer part number: MF40202V1-1000U-A99

Parametri

40x40x20mm
24VDC
uz ass
MagLev
15.04m3/st
25.5dBA
7000apgr.
0.77W
