Apraksts

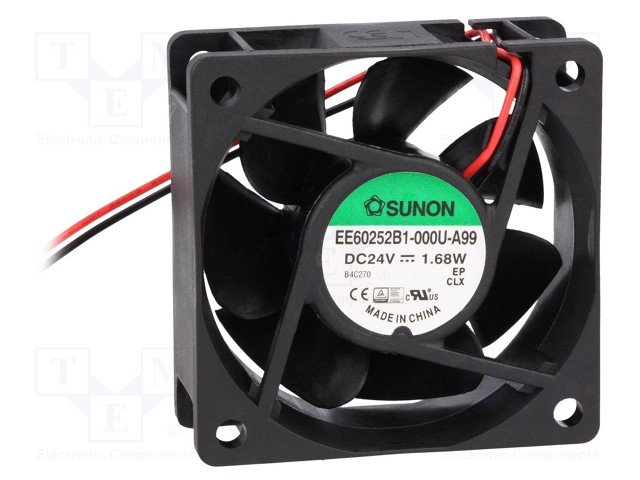

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 24V DC
• Fan dimensions 60x60x25mm
• Power consumption 1.68W
• Current rating 0.07A
• Fan efficiency 39.7m3/h
• Noise level 34.5dBA
• Kind of Bearing ball bearing
• Rotational rate/speed 4500 (±15%)rpm
• Weight 52g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 300mm
• Flammability rating UL94V-0
• Additional functions Autorestart
• Fan motor brushless DC
• Static pressure 5.33mm H2O
• Operating voltage 8...27.6V
• Related items SRF4-30
• Wire size 26AWG
• Additional information
• Gross weight: 52.3 g
• Manufacturer part number: EE60252B1-000U-A99

Parametri

60x60x25mm
24VDC
uz ass
ritgultnis
39.7m3/st
34.5dBA
4500apgr.
1.68W

Papildu dokumentācija
