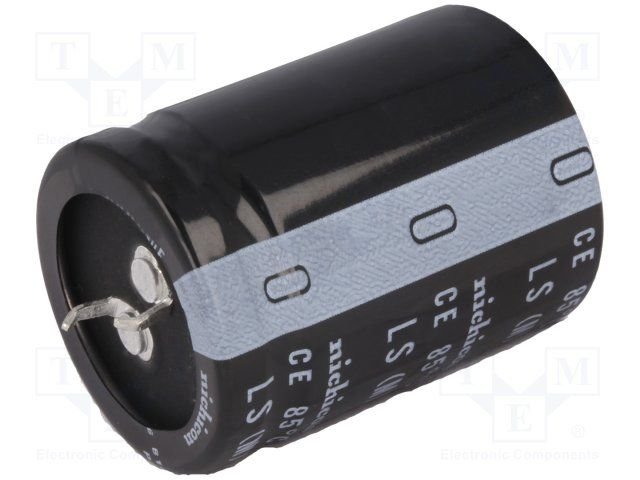

470/200V, 105C, Ø20x35mm, ±20%, Kondensators elektrolītisks, 3000h, SNAP-IN, NICHICON
470/200V, 105C, Ø20x35mm, ±20%, Kondensators elektrolītisks, 3000h, SNAP-IN, NICHICON

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

470/200V, 105C, Ø20x35mm, ±20%, Kondensators elektrolītisks, 3000h, SNAP-IN, NICHICON

Cena: 4.94 €
00026592
LLS2D471MELY
6
  • Apraksts

    • Manufacturer NICHICON
    • Type of capacitor electrolytic
    • Mounting THT
    • Capacitance 470µF
    • Operating voltage 200V DC
    • Body dimensions Ø20x35mm
    • Tolerance ±20%
    • Leads snap-in
    • Service life 3000h
    • Operating temperature -40...85°C
    • Max. operating current 2.03A
    • Leakage current 0.91mA Capacitors features:
    • long life
    • low impedance
    • high ripple current
    • Additional information
    • Gross weight: 0.02 kg

    Parametri

    200V
    Ø20x35mm
    NICHICON
    3000h
    470µF
