Apraksts

• Manufacturer APEM
• Type of switch push-button
• Number of positions 2
• Contacts configuration  SPDT
• AC contacts rating @R  3A / 250V AC
• DC contacts rating @R  4A / 30V DC
• Switching method  ON-ON
• IP rating IP40
• Leads for soldering
• Operating temperature -40...85°C
• Electrical life 30000 cycles
• Max. contact resistance: 10mΩ
• Button shape prominent
• Mounting hole diameter Ø12.5mm
• Body colour silver
• Body material brass
• Test voltage 2kV
• Contact material silver
• Manufacturer series 8000
• Min. insulation resistance 100MΩ
• Body plating nickel
• Related items AP-U903,  U121,  U166
• Stable positions number 2

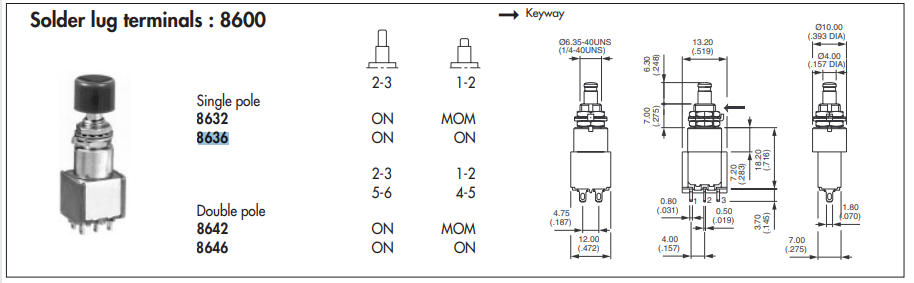

• Dimensions paskatīt
• Papildu informācijas
• Masa bruto: 16.27 g
• Oriģināls simbols: 8636A5X933

Parametri

SPDT
3A/250VAC
4A/30VDC
ON-ON
Poga
Ar fiksāciju
M12
Bez apgaismojuma
