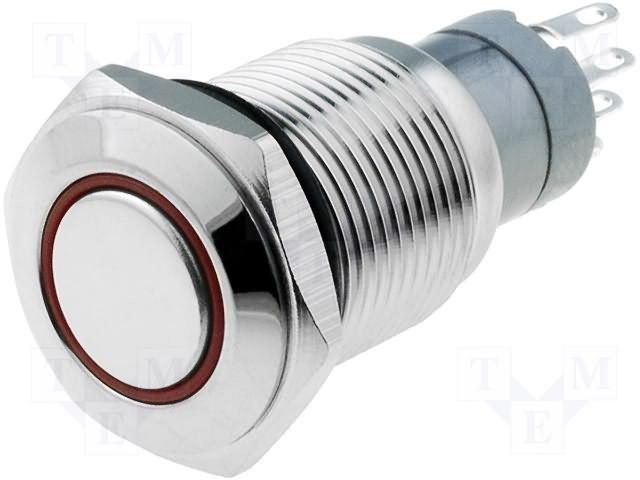

Apraksts

• Manufacturer ONPOW
• Type of switch vandal resistant
• Number of positions 2
• Contacts configuration  DPDT
• DC contacts rating @R  2A / 48V DC
• IP rating IP67
• Switching method  ON-ON
• Illumination LED 12V AC/DC,  ring
• Backlight colour red

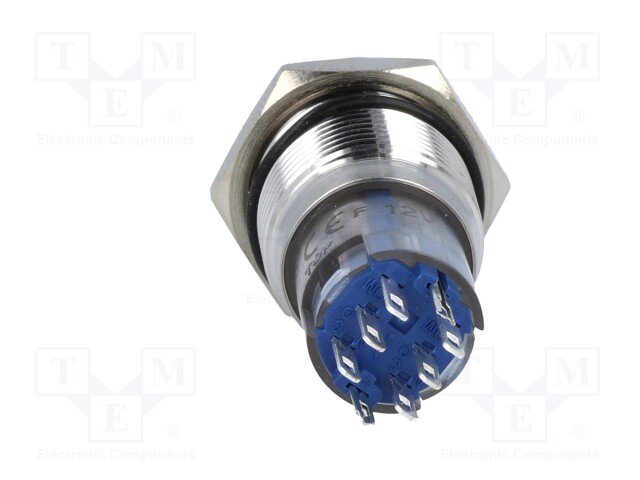

• Leads for soldering
• Operating temperature -20...70°C
• Electrical life 200000 cycles
• Max. contact resistance: 50mΩ
• Operating Force 5.5N
• Mechanical durability 1000000 cycles
• Button shape flat
• Mounting hole diameter Ø16mm
• Body colour silver
• Body material stainless steel
• Ring shape rounded
• Test voltage 5kV
• Contact material silver alloy
• Stable positions number 2

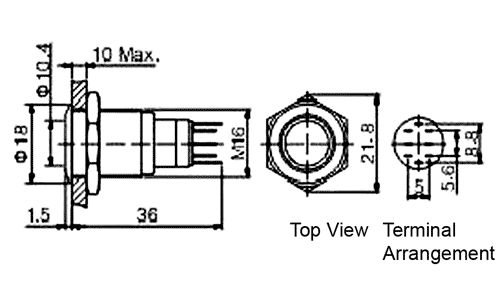

• Dimensions paskatīt
• Papildu informācijas
• Masa bruto: 13.72 g
• Oriģināls simbols: LAS2GQF-22ZE/R/12VDC/S/IP67

Parametri

DPDT
2A/48VDC
ON-ON
Poga
Ar fiksāciju
M16
LED12VAC/DC
