Apraksts

• Manufacturer ONPOW
• Switch type vandal resistant
• Stable positions number 2-position
• Contacts configuration SPST-NO
• AC contacts rating
• (at resistance load) 0.5 A / 220 VAC
• DC contacts rating
• (at resistance load) 1 A / 24 VDC
• Sealing IP67
• Switching method ON-OFF
• Backlight colour green
• Leads for soldering
• Operating temperature -20...55°C
• Electrical life 200000cycles
• Max. contact resistance: 50mΩ
• Switching torque 4N
• Mechanical durability 1000000cycles
• Illumination LED 24V DC, ring light

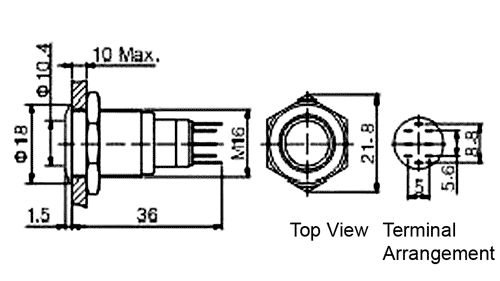

• Mounting hole diameter Ø16mm
• Body colour silver
• Button shape convex
• Body material stainless steel
• Test voltage 5kV
• Contact material silver alloy

Parametri

SPST-NO
0.5A/220VAC
1A/24VDC
ON-ON
Poga
Ar fiksāciju
M16
LED24VDC

Papildu dokumentācija
